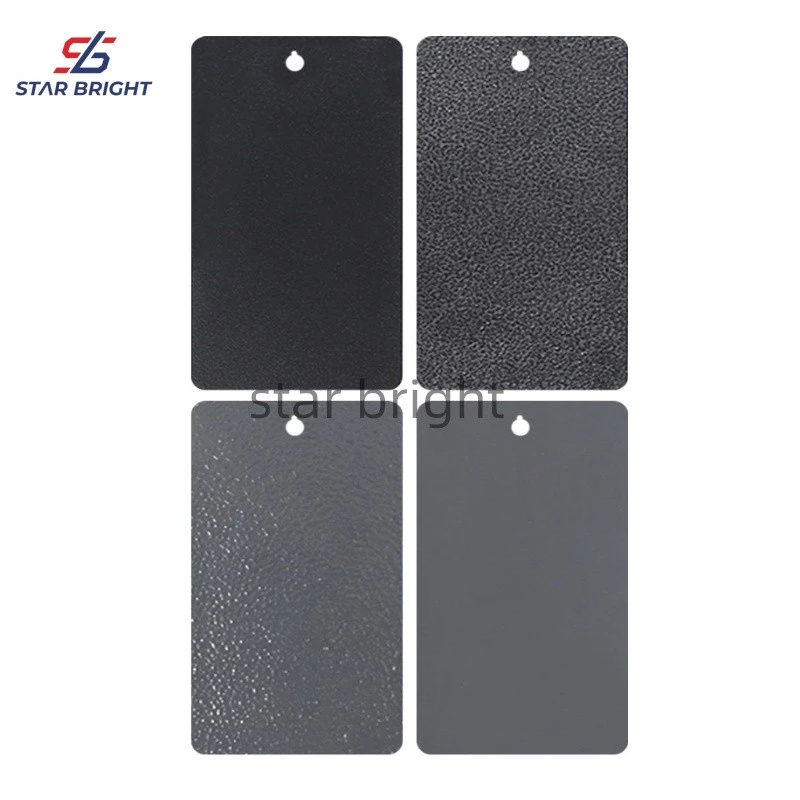

Matt Aluminum Smoke Grey Powder Coating
Powder coating is a new type of 100% solid powder coating which does not contain solvents. With no solvent, no pollution, energy and resources saving, recycling, environmental protection, higher performance, low health risk to workforce, economical advantages etc.
Products Description
What is Powder Coating?
Powder coating is a new type of 100% solid powder coating which does not contain solvents. With no solvent, no pollution, energy and resources saving, recycling, environmental protection, higher performance, low health risk to workforce, economical advantages etc.
Most powder coating is used by electrostatic spraying on metal surface, and then cure in oven, eventually form a solid layer.
Applications of Product:Matt aluminum smoke grey powder coating
|
♦Electrical Household Appliances |
♦Aerospace Area |
|
♦Automotive Electronics |
♦Fitness Equipment |
|
♦Track Traffic |
♦Medical Devices |
|
♦Petroleum Pipes, Valve |
♦Tools & Hardware |
|
♦LED Lights, Outdoor Lamps |
♦Radiator & Heat Sink |
|
♦Glass Decoration |
♦External Facilities |
Product test :Matt aluminum smoke grey powder coating
♦Epoxy powder coating: offer the best corrosion protection.
♦Polyester powder coating: offer the highest exterior stability and performance.
♦Our products applied to indoor and outdoor.
♦Our products with SGS,Tuv, Rohs, ISO Certificate.
Surface Preparation
All surfaces shall be degreased and pre-treated for optimal performance before application
Aluminium Yellow chromate or green chromate/phosphate
Ferrous metals Zinc phosphate or Iron phosphate
Zinc coated metals Zinc phosphate or choromate conversion

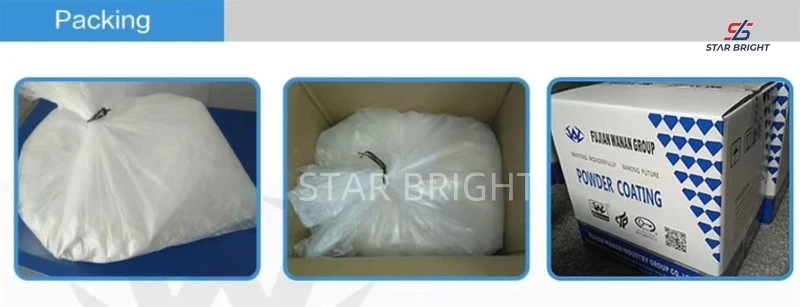

Packing details:Matt aluminum smoke grey powder coating
Inner with PE bag, outer with carton,net weight 20kg/carton
One package size 283X275X385 mm
One gross weight 20.900 kg
Inner: two layers of plastic bag
Outer: paper carton
Net Weight: 20KG/CTN
Services
Design-based customization
Sample-based customization
Powder coatings are mixed with a certain proportion of the resin, fillers, curing agents and other additives, and then prepared by hot extrusion, crushed and sieved. The products are stable at room temperature storage, and then baking heat melted and solidified to form a smooth and bright permanent coating to achieve the purpose of decoration and anti-corrosion.
Product Details
| Type | Epoxy-Polyester Indoor Chrome Type |
| Color | Chrome |
| Surface Finish | smooth |
| Gloss level | 100-120% |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 50-90 μm film thickness |
| film thickness | 60-80μm |
| Application Recommendation | |
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-20CM |
| Curing Temperature | 200 degree / 10 mins |
| electric current | 25-30MA |
| Spray Room | Clear, no other powder coating |
| Air pressure | Appropriate |
| Powder coated Film Mechanical Properties | |
| Adhesion | Cross-cut(3mm),no loss of adhesion |
| Impact Resistance | Direct impact 50kg/cm |
| Pencil Hardness | 2H |
| Cupping Test | 6mm Mandrel |
| Bending Test | 5mm |
| Powder Coated |
Film Chemical Resistance |
| Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
| Acid Resistance | 5% HCL for 48 hours dip test - No change |
| Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
| Powder Coating Advantage | |
| Ratio | Spray ratio is 90% |
| Square | 1KG of powder coating can spray 8-10 square meter |
| Adhesive force | Powder Coating adhesive force is stronger 8-10 years |
| Color | Powder Coating is not easy to fade in 5-8 years |
| Storage Stability | |
| Store in ventilated, dry, clean room, temperature | < 25ºC |
| Relative humidity | 50-65% |
| Away from direct sunlight, fire, heat | |
| For best performance, use within 6 months |
